Angle Bracket with Rib 90 x 90 x 60 mm Galvanised Steel - Per Piece

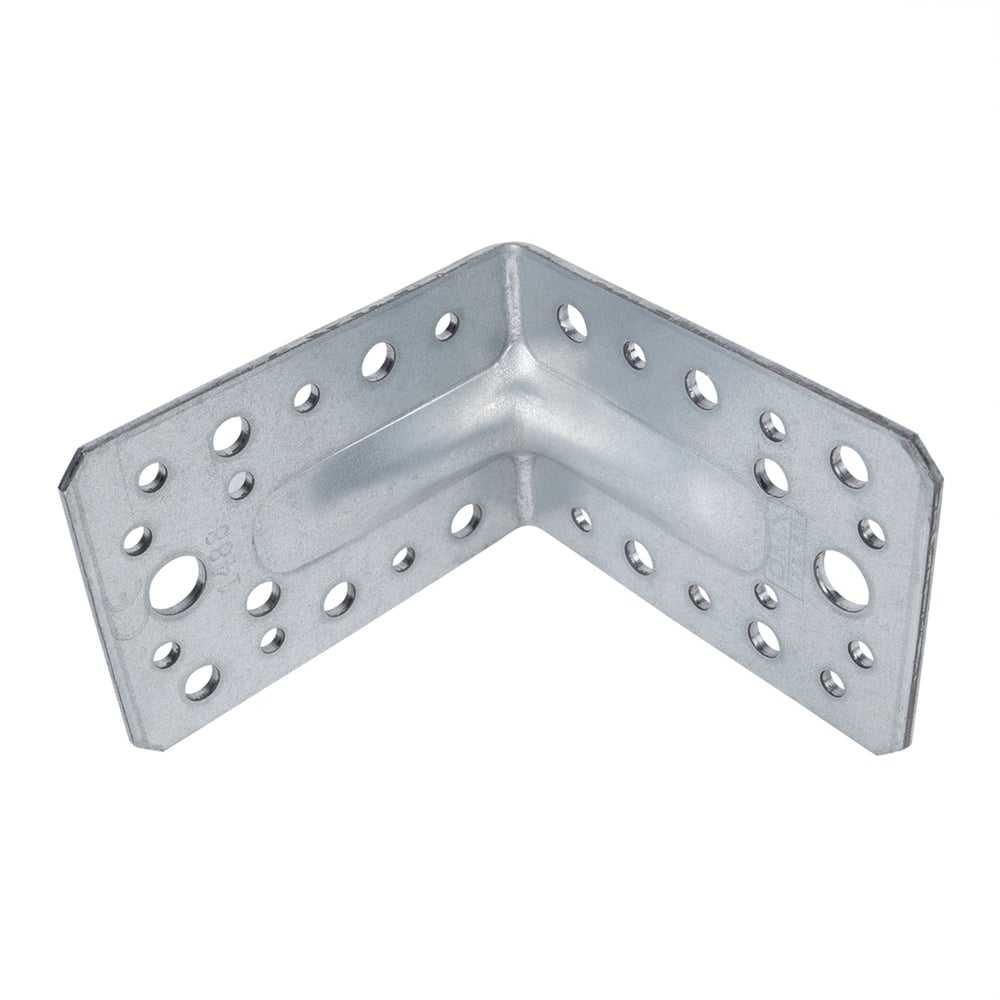

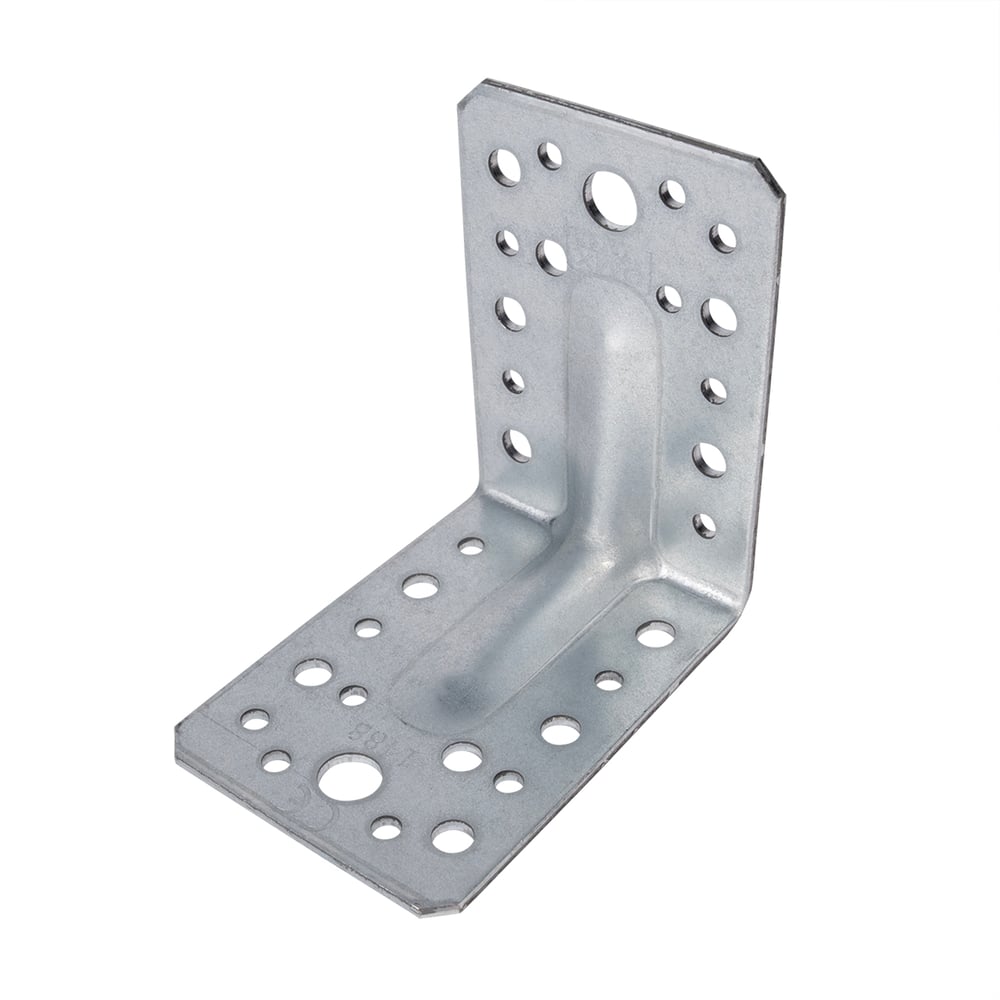

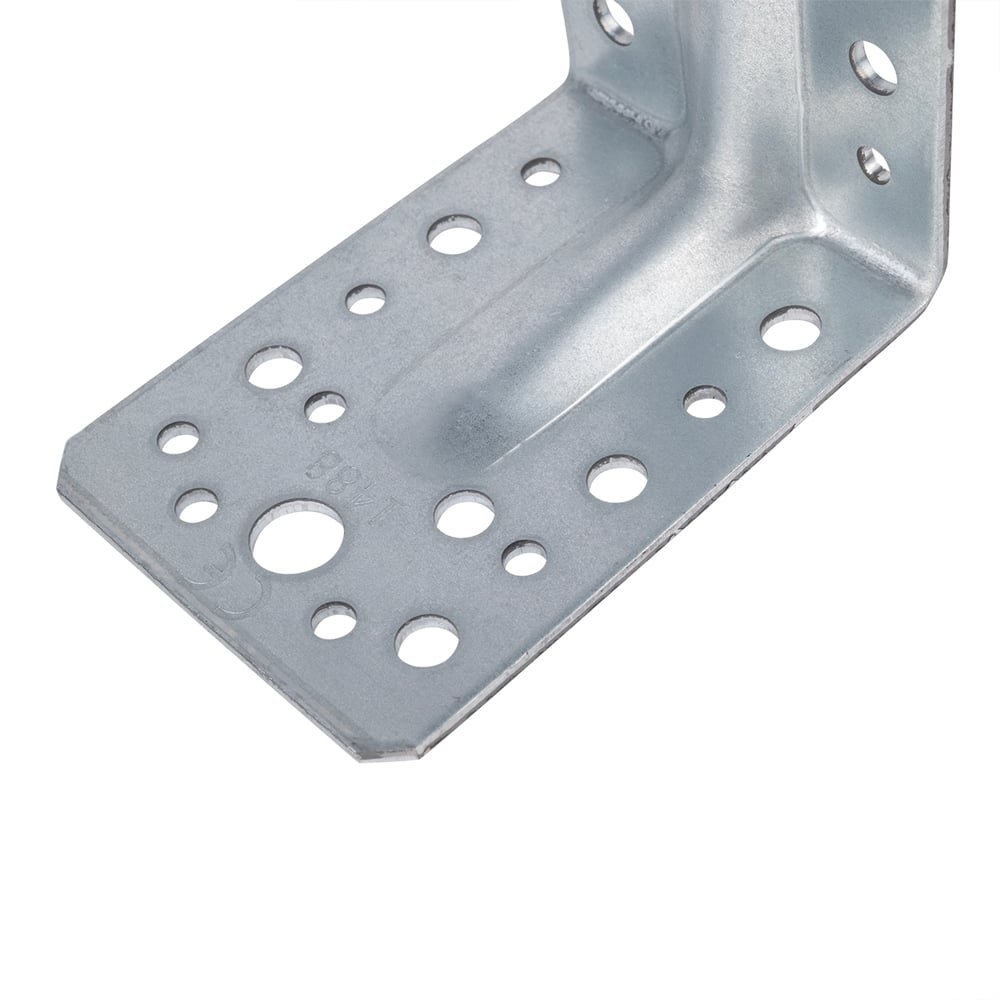

Looking for angle brackets? Wovar has various angle brackets, also called corner brackets, including this 90 x 90 x 60 mm galvanised bracket. The corner brackets are suitable for beams from 6 cm. This galvanised steel corner bracket is extra strong thanks to the rib reinforcement in the centre of the bracket. Thanks to the 22 mounting holes and the elongated hole, the angle bracket is easy to attach.

The different dimensions of the holes are: 8 x 4 mm, 9 x 6 mm, 4 x 9 mm and 1 x 11 mm. The elongated hole measures 11 x 30 mm.

Which fasteners do I need?

You can use different types of screws and lag screws to connect this angle bracket. We offer chipboard screws stainless steel & chipboard screws galvanised in various sizes. Our stainless steel and galvanised coach screws in various sizes are also perfect for attaching this corner bracket.

For the smaller sizes, 4 mm and 6 mm, we recommend using chipboard screws.
8 x 3.5 mm (length 50 or 55 mm)
9 x 5 mm (length 50 or 55 mm)

We recommend using lag screws for the 9 and 11 mm holes, plus the elongated hole.
4 x M8 (length 50 or 60 mm)
2 x M10 (length 50 or 60 mm)

Fixing the coach screws can be done with a spanner or a socket wrench. M10 requires a size 17, and an M8 requires a size 13 spanner. Drilling pilot holes is highly recommended when working with coach screws. Always drill a hole two sizes smaller than the size coach screw you will be working with. For an M8 screw, this means using a hardwood drill bit 6 mm. For an M10, use an 8 mm hardwood drill bit.

We offer a wide range of chipboard screws and coach screws, so you are sure to find the correct fastener.

Buy angle brackets

The angle brackets are sold per piece. Companies in the construction and garden sector receive additional benefits, such as a business discount, with a business account.

Order angle brackets, joist hangers, beam brackets, mending plates, or any of our anchors and brackets in bulk to take advantage of our volume discount.

Is this not quite what you are looking for? Check out more angle brackets, or browse our entire range of metal brackets.
